188Pcs Deutsch Connector Kit - 8 Sets 2/3/4/6/8/12 Pin Waterproof Automotive Electrical Wire Connectors & Terminals for Car, Truck, Motorcycle Wiring & Electrical Repairs

DT Connector Specification: Gender: Pin/Male Wire Range: 14-18 Wire Size: 16-20 AWG Contact Plating: Nickel Accepts contact size: 16 Integrated latch for mating In-line, flange, or PCB mount Insulation:.075-.140 [1.90-3.55] Contact Style: Stamped & Formed Rectangular, thermoplastic housing Current Rating: 13 Amps Continuous Pin Number: 2, 3, 4, 6, 8, and 12 cavity arrangements Wedgelocks assure contact alignment and retention Operating Temperature: 14°F (-10°C) to +176°F (+80°C) Easy Set Up & Repair: Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the connector. It can also be easily removed when needed High Precision: DT Electrical Wire Connector Plug use high-precision phos-copper plating process to improve conductivity, easy to install under soldering and crimping When to Use: DEUTSCH DT connectors provide reliability and performance on the engine or transmission, under the hood, on motor controllers, solenoid interfaces, on the chassis, or in the cab. DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower costs, and design flexibility. DT connectors offer the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell. What you will get? 1pcs 12Pin Male, 1pcs 12Pin Female 1pcs 8Pin Male, 1pcs 8Pin Female 1pcs 6Pin Male, 1pcs 6Pin Female 1pcs 4Pin Male, 1pcs 4Pin Female 2pcs 3Pin Male, 2pcs 3Pin Female 2pcs 2Pin Male, 2pcs 2Pin Female 40pcs Male Terminal, 40pcs Female Terminal This plugs can only be used once, we recommend not to disassemble it after using the plug.

Wide Application - 188Pcs waterproof car electrical wire connector terminals plug kit perfect for various wire connectors of motorcycle, scooter, car, truck, quad bike, caravan, marine, jet ski, boats

Features - DT deutsch connector kit provide reliability and performance on the engine or transmission, under the hood, on motor controllers, solenoid interfaces, on the chassis, or in the cab, deutsch connector wire harness is by far the most popular connector in many automotive, industrial and motorsport applications.

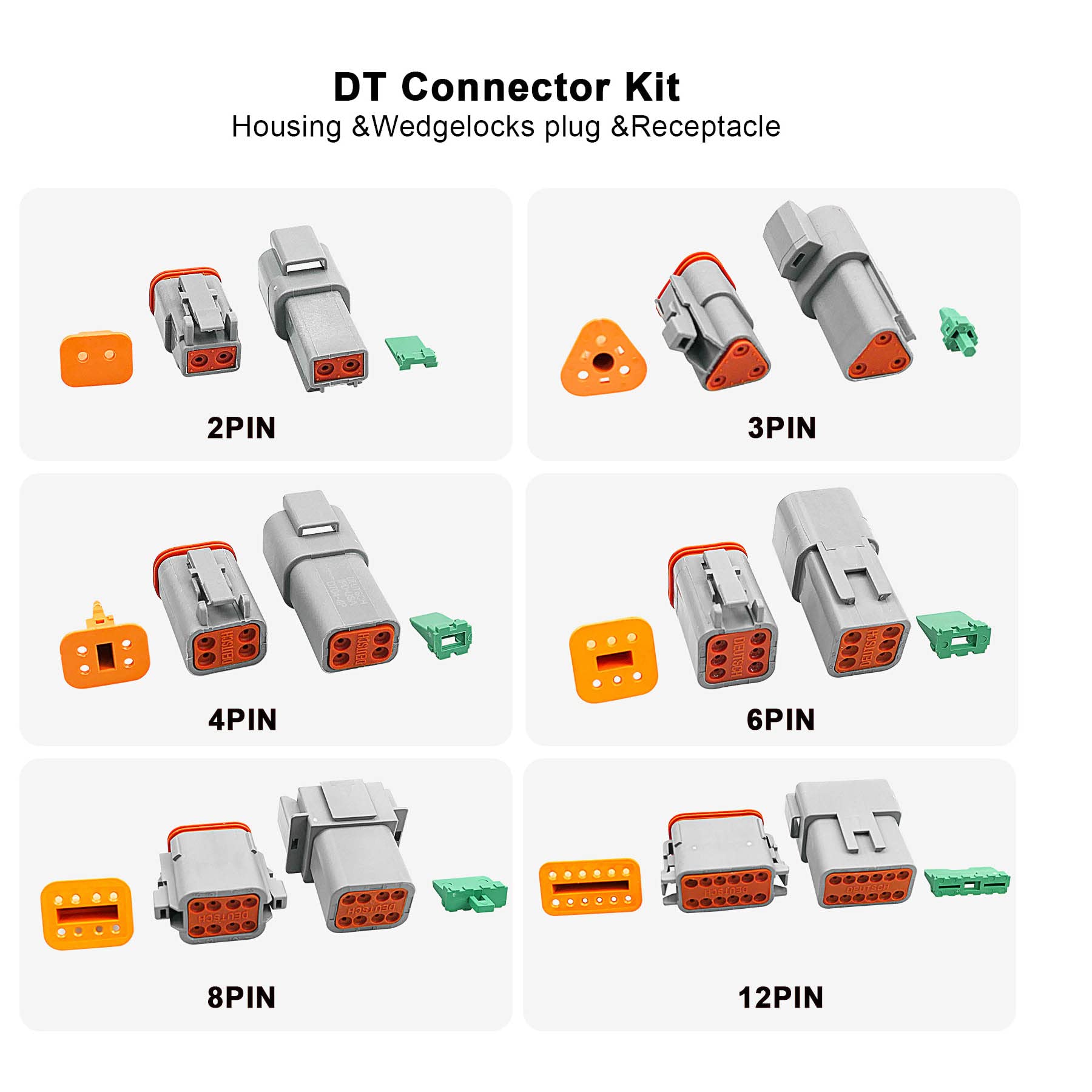

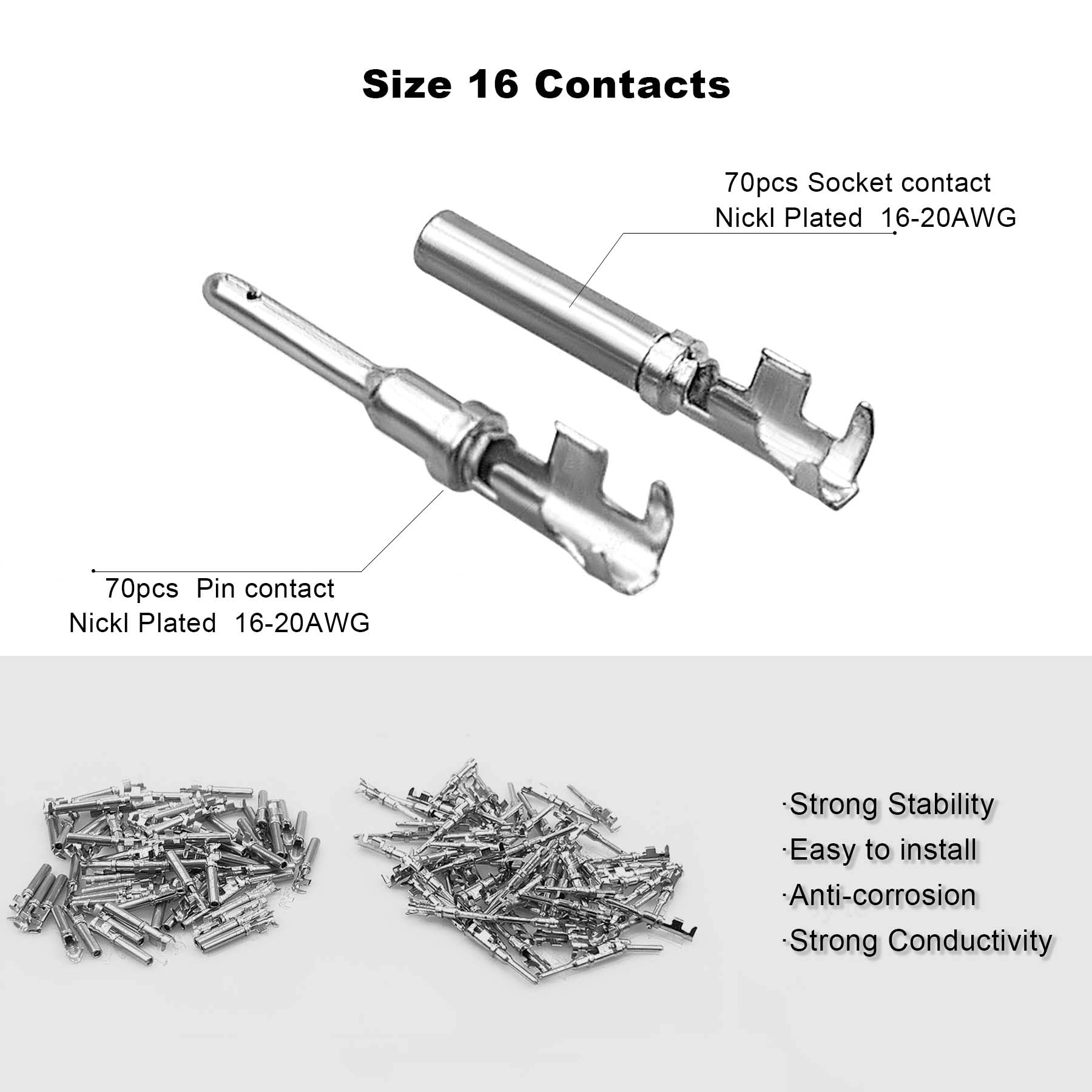

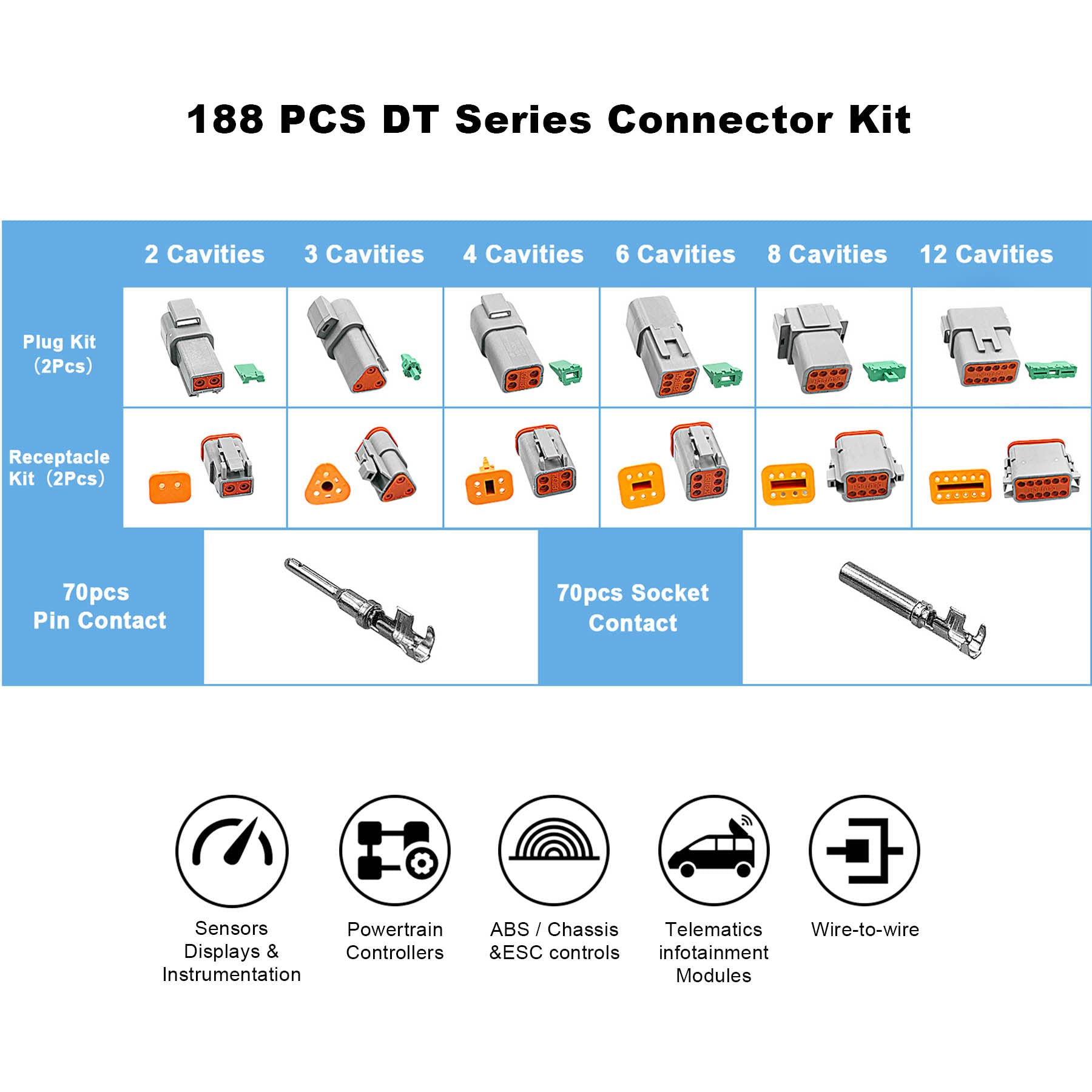

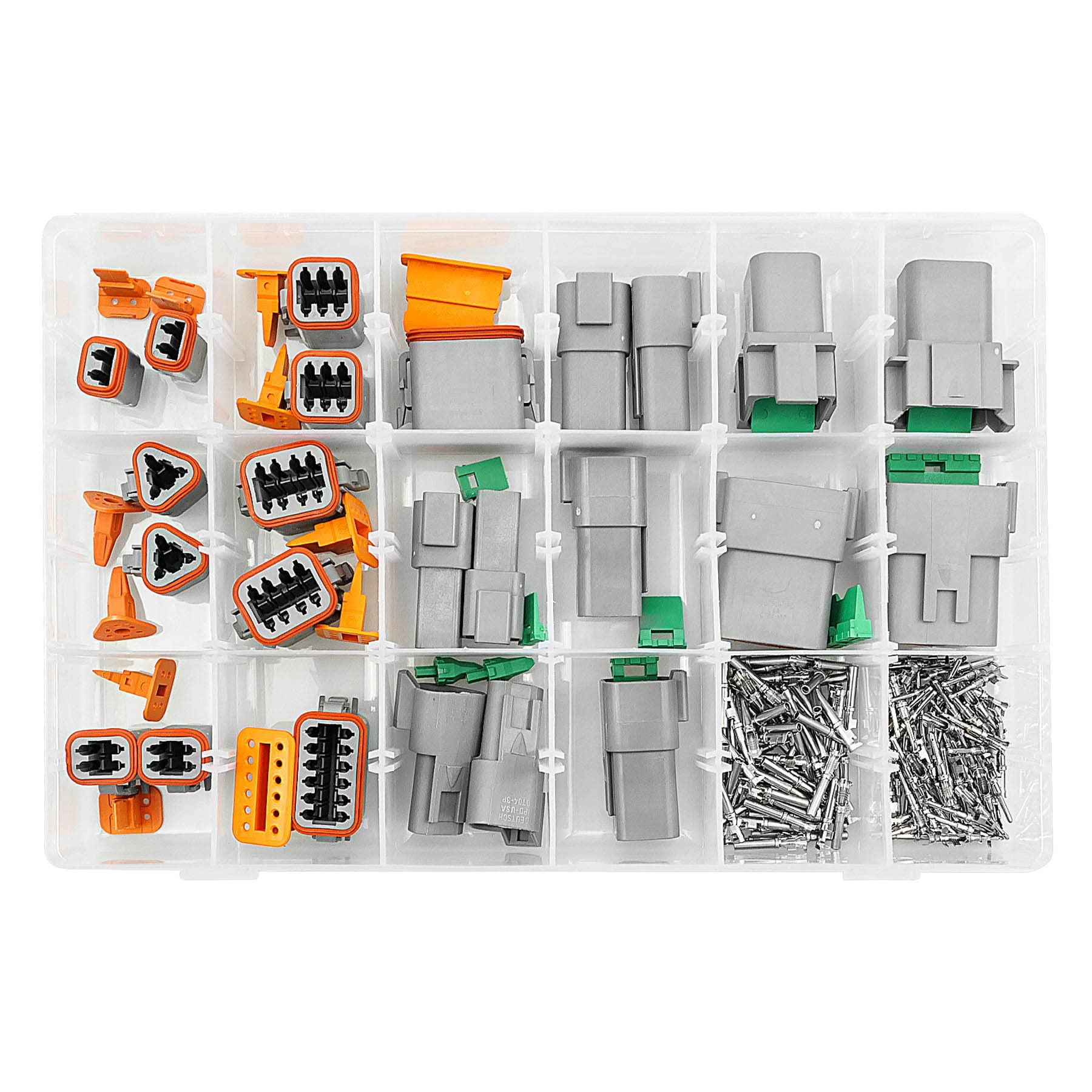

What Will You Get - Car electrical connector inculde 1pcs 12Pin Male, 1pcs 12Pin Female; 1pcs 8Pin Male, 1pcs 8Pin Female; 1pcs 6Pin Male, 1pcs 6Pin Female; 1pcs 4Pin Male, 1pcs 4Pin Female; 2pcs 3Pin Male, 2pcs 3Pin Female; 2pcs 2Pin Male, 2pcs 2Pin Female; 40pcs Male Terminal, 40pcs Female Terminal. This plugs can only be used once, we recommend not to disassemble it after using the plug.

DT Connector Plug Specification - Pin/male gender, 14-18 wire range, 16-20 awg wire size, nickel contact plating, 16 accepts contact size, integrated latch for mating, in-line, flange, or pcb mount, 075-.140 [1.90-3.55] insulation, stamped & formed contact style, rectangular, thermoplastic housing, 13 amps continuous current rating, pin number 2, 3, 4, 6, 8, and 12 cavity arrangements, wedgelocks assure contact alignment and retention

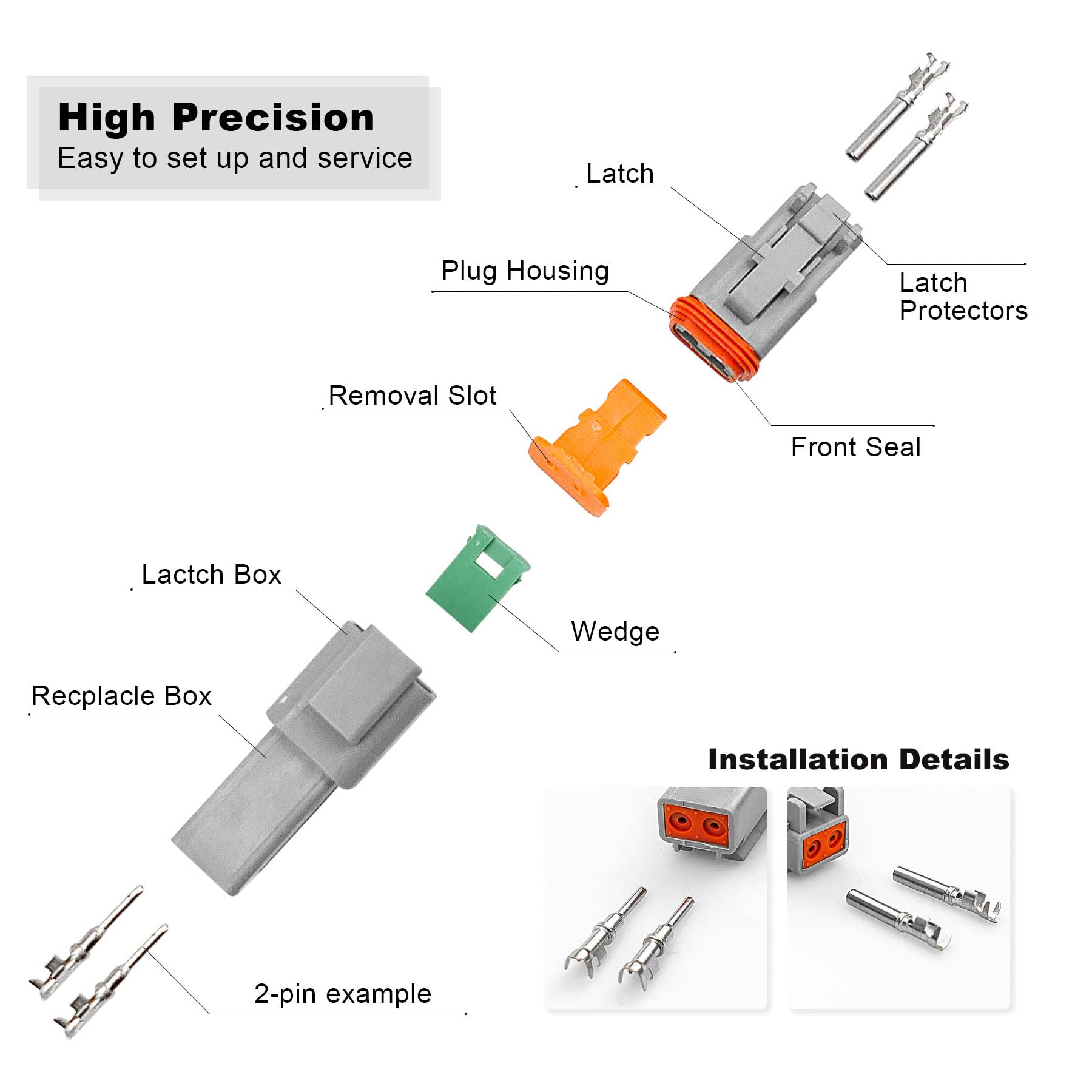

IP68 Waterproof & High Precision - Deutsch connector wire harness have weather and dust resistance, wire connector plugs are made of high precision phosphor bronze plating process, electrical wire terminals improves conductivity and is easy to solder and crimp installation. Wedge locks for plugs and receptacles serve as secondary locks for contacts/terminals and as retainers for ribbed seals on the front end of the connector body.
