Acouto Automotive Circuit Tester Kit - Multifunction Electrical Diagnostic Tool for Wiring, Cables & Accessories - Perfect for Car Repair, DIY Mechanics & Auto Maintenance

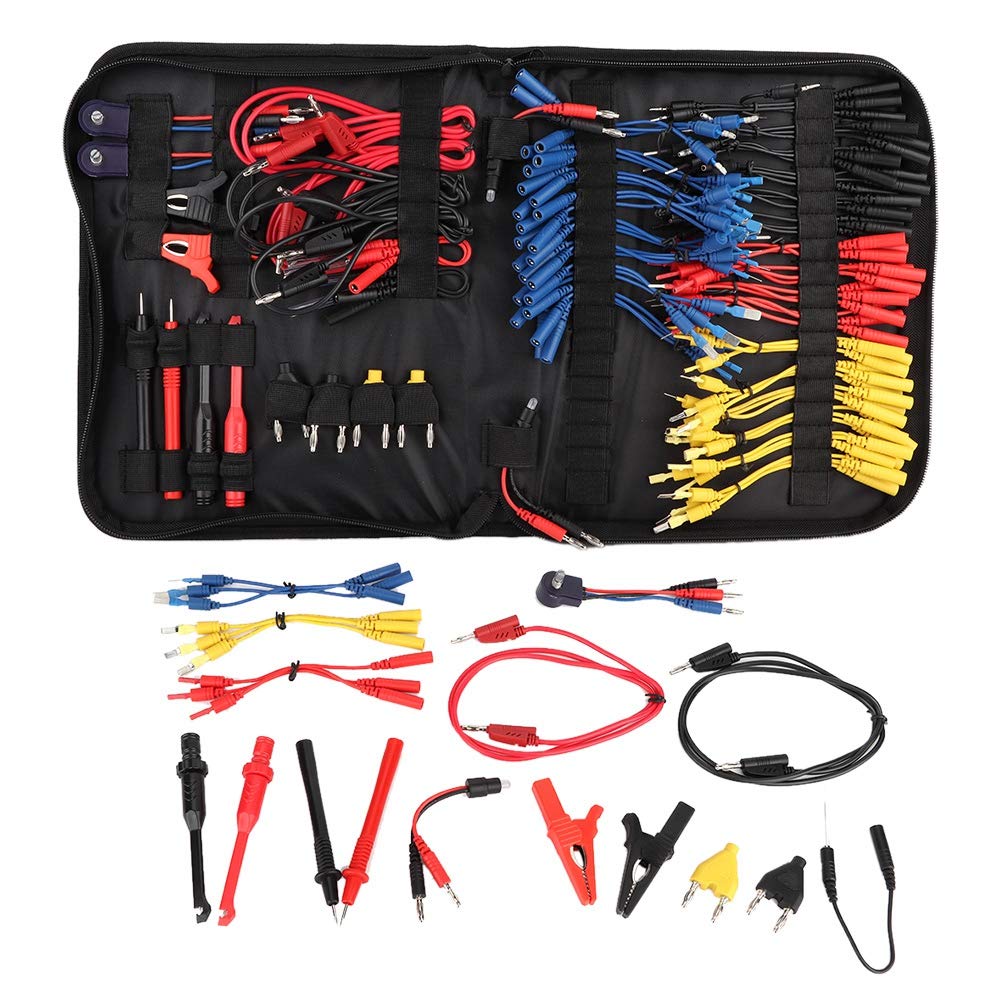

Functions When checking the parts, it could connect the back of terminal directly, would not damage the circuit, reduce the circuit rust and avoid to adding impedance. Apply to any Automotive Multimeter, the extended line of probe for oscilloscope. More convenient connection and checking rapidly. When checking the electric current, only use the lines to connect the circuit, do not need to cut the electric wires. Variable Resister can simulate the pretend signal of coolant temperature sensor, throttle valve sensor and send the pretend signal to computer. It would avoid risk to change the new parts again. Equip 2 sets LED light. It can supervise hall effect, photoelectric signal, nozzle, electromagnetic valve, electromagnetic valve of transmission shift gear....and control signals. SRS Connector can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment. Various wires in this box, it is suitable for the Europe, America and Japan terminal. High common use and convenience. Specification Condition: Brand New Material: ABS + PVC Color: As Picture Shown How to use this circuit to test the cable Disconnect the electronic connector Choose the matching connector adapter to connect the signal cable Series connect the connected signal cable between electronic connectors Connect the instrument test table pen and transfer switch wiring connection hole Package List 2 * 5kΩ Potentiometer (Variable Resister)2 * LED Stroboscope 2 * SRS Connector2 * Alligator Clip2 * Prober2 * Red Wire Harness Prober2 * Black Wire Harness Prober2 * 1 to 2 Connector 2 * Thorn Clip2 * Connecting Line 72pcs Red Strip Connecting Line: 1.5mm (Male/Female)+Connector of Banana Sockets (3pcs/each)2.0mm (Male/Female)+Connector of Banana Sockets (3pcs/each)3.5mm (Male/Female)+Connector of Banana Sockets (3pcs/each)4.0mm (Male/Female)+Connector of Banana Sockets (3pcs/each)0.7mm (Male/Female)+Connector of Banana Sockets (3pcs/each)0.8mm (Male/Female)+Connector of Banana Sockets (3pcs/each)1.2mm (Male/Female)+Connector of Banana Sockets (3pcs/each)2.0mm (Male/Female)+Connector of Banana Sockets (3pcs/each)2.5mm (Male/Female)+Connector of Banana Sockets (3pcs/each)3.0mm (Male/Female)+Connector of Banana Sockets (3pcs/each)5.0mm (Male/Female)+Connector of Banana Sockets (3pcs/each)6.0mm (Male/Female)+Connector of Banana Sockets (3pcs/each)

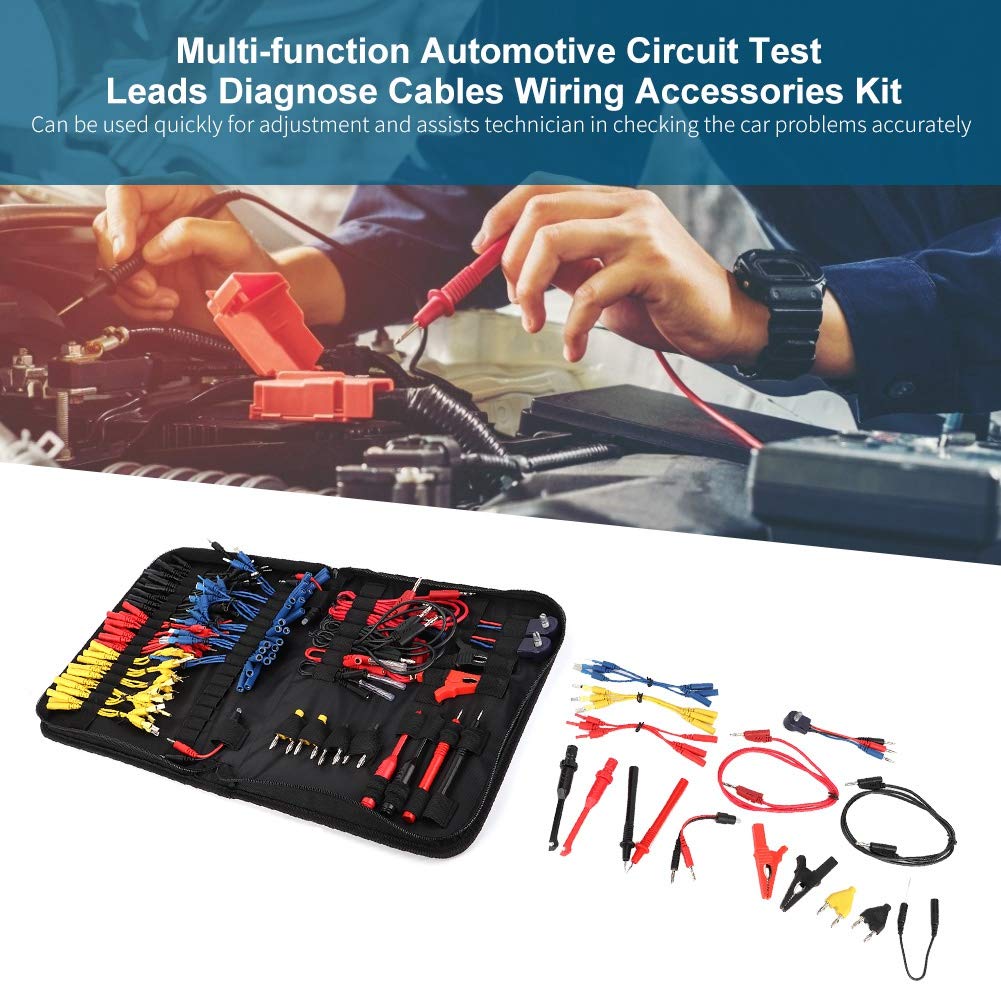

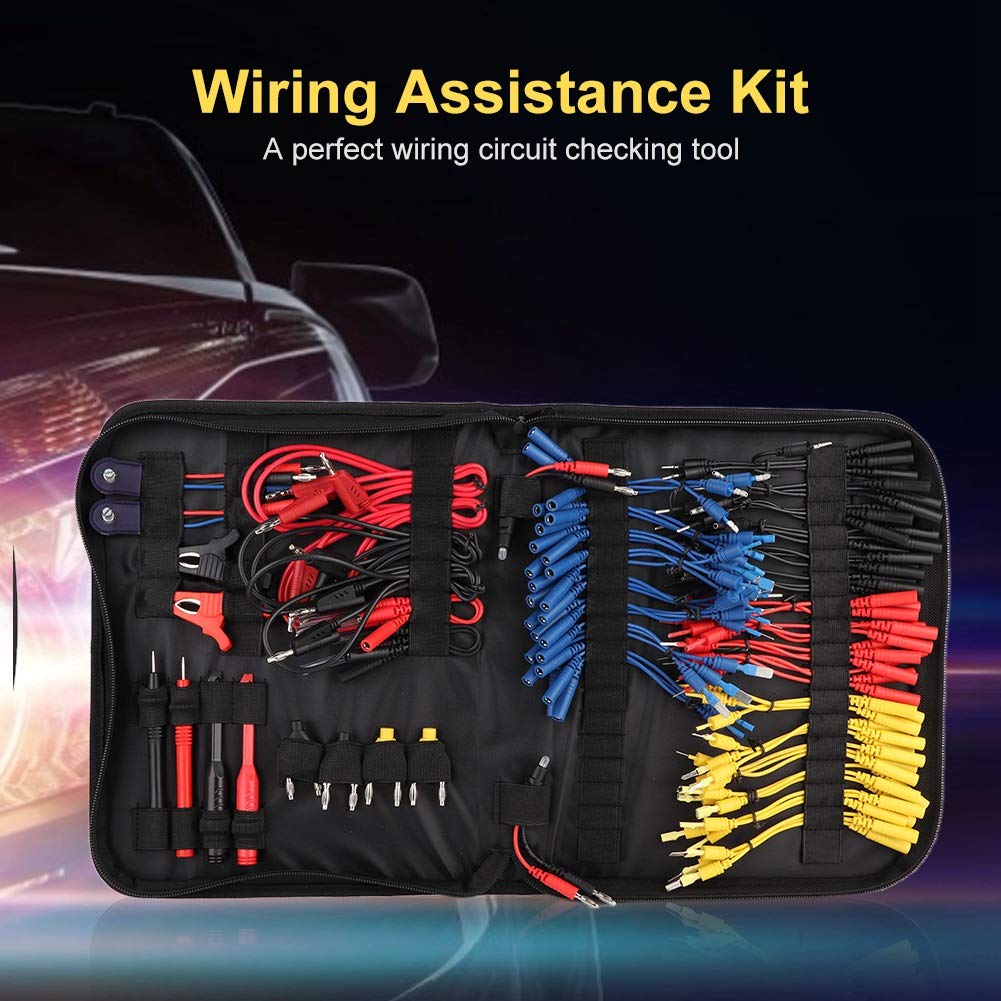

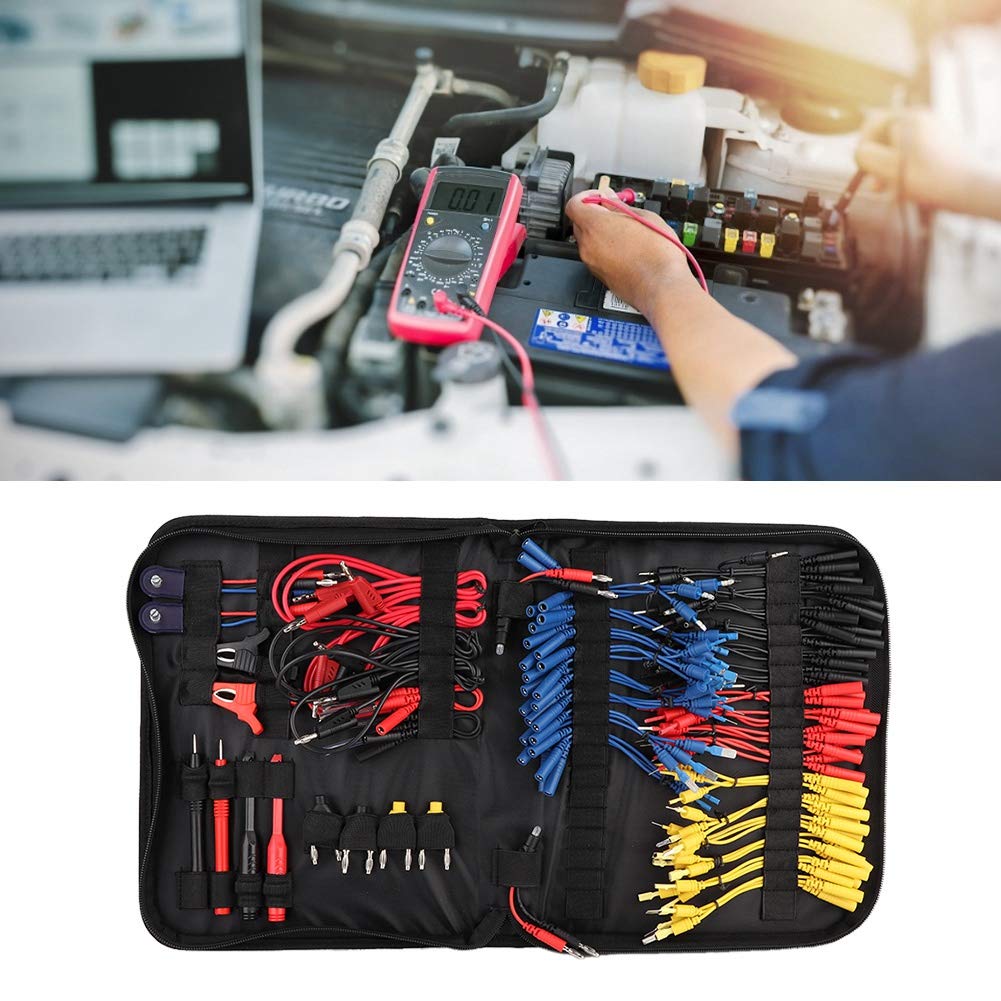

Wiring Assistance Kit---- A wiring circuit checking tool. Can be used quickly for adjustment and assists technician in checking the car problems accurately. More convenient connection and checking rapidly. High common use and convenience

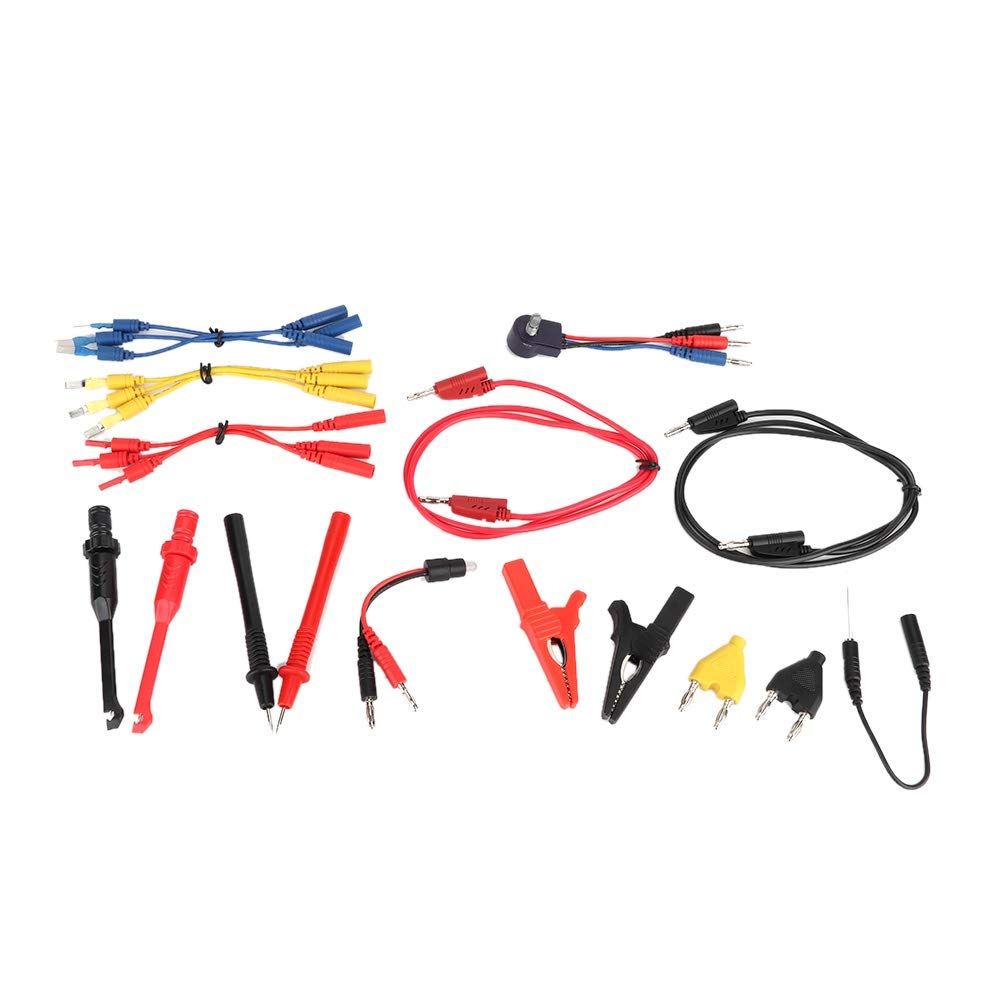

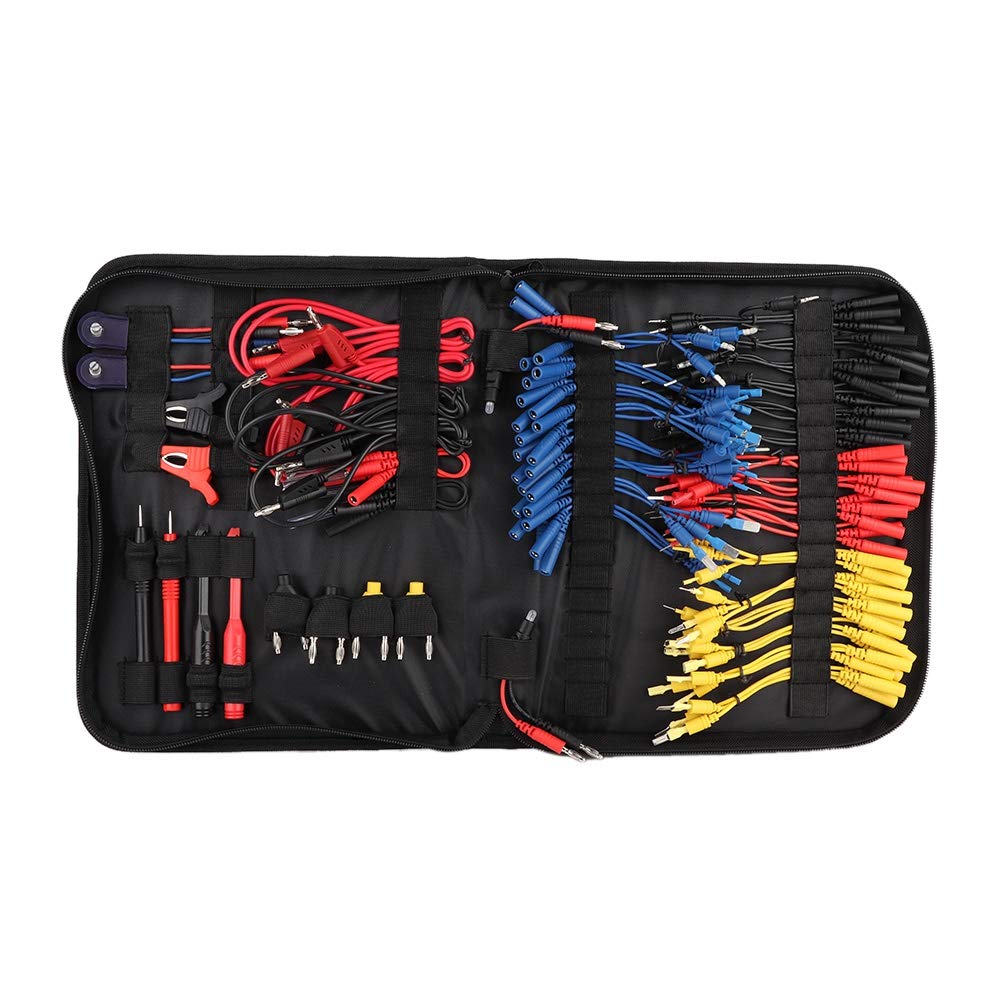

Strong Compatibility---- Complete set of various wires in the case that are suitable for most European, and Japanese made terminals. Apply to any Automotive Multimeter, the extended line of probe for oscilloscope. Equipped with 2 sets of LED Lights

---- Variable Resister can simulate the pretend of coolant temperature sensor, throttle valve sensor and send thepretend to vehicle ECU. It would avoid risk to change the new parts again

Multi-function---- The automotive test kit can be used to monitor Hall Effect, photoelectric , nozzles, electromagnetic valve of shift gears and control . SRS connector provided can simulate and routed contracting device of safety belt to avoid accident or miss-judgment

Easy to Use---- When checking the parts, it could connect the back of terminal directly, would not to damage the circuit, reduce thecircuit and avoid to adding impedance. When checking the electric current, only use the lines to connect the circuit, do not need to cut the electric wires
